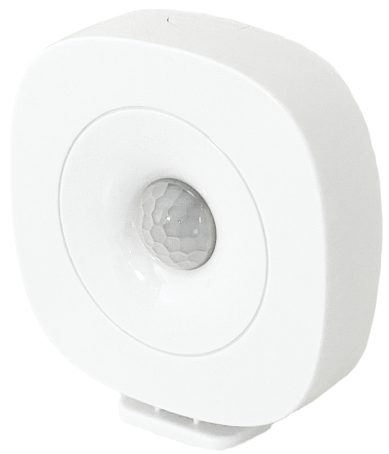

Frient motion sensor

Connecting the Frient motion sensor:

1. Insert the batteries into the sensor
2. Open the app and tap "+ " and tap "Add device"
3. Select the device type "Frient Sensors"
4. Continue following the steps in the Eva Smart Home app

Resetting:

1. Open the sensor cover

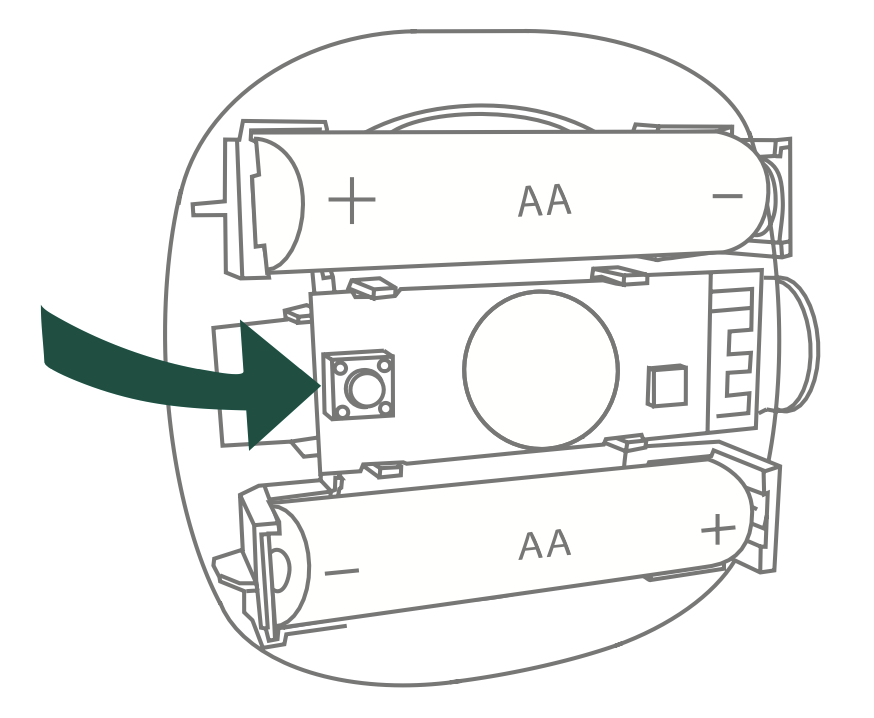

2. Press and hold the button on the inside (see illustration)

3. The device will first flash red once, then twice, and then flash several more times
4. When you release the button, the LED light will flash once for a long duration, and the reset is complete

Functionality:

The Frient Motion Sensor alerts you to movement in a room and allows you to activate lights or other automations when movement is detected. Set up automations with Eva Hub and the Eva Smart Home app.

Placement:

The rear part of the device is also the wall bracket. Detach it from the main part. The rear part can be mounted using the included screws or double-sided tape, depending on the surface. As an alternative to screwing the rear part of the device to the wall, the magnet on the included corner bracket can be removed from it and screwed directly to the wall.

For corner mounting, use the included corner bracket.

• Frient Motion sensor usermanual .pdf900 KB
